Engineering mechanics statics 13th hibbler chapter 2 problem 10

Question

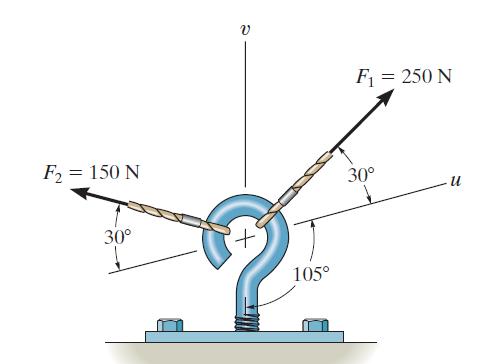

Resolve F2 into components along the u and v axes

and determine the magnitudes of these components.

Answer 1

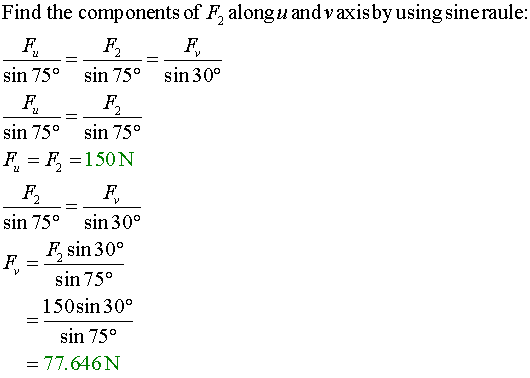

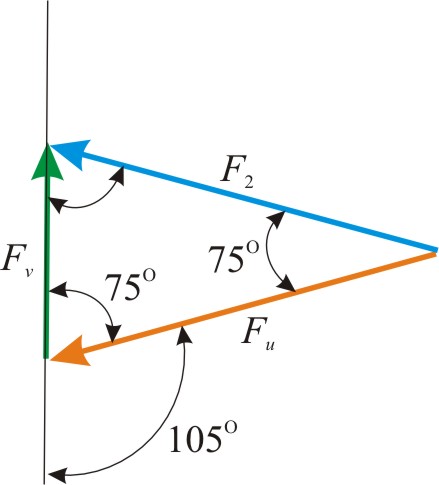

Draw the vector diagram of the forces:

Therefore, the component are 150 N and 77.646 N
