Vectore mechanics for engineers 9th eddition;4.105P

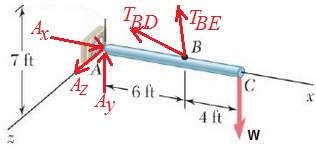

A 10 foot boom is acted upon by the 840 lb force shown.

Determine the tension in each cable and the reaction at the ball and socket joint at point A.

asked Jul 11, 2015 in MECHANICAL ENGINEERING by anonymous

Share this question

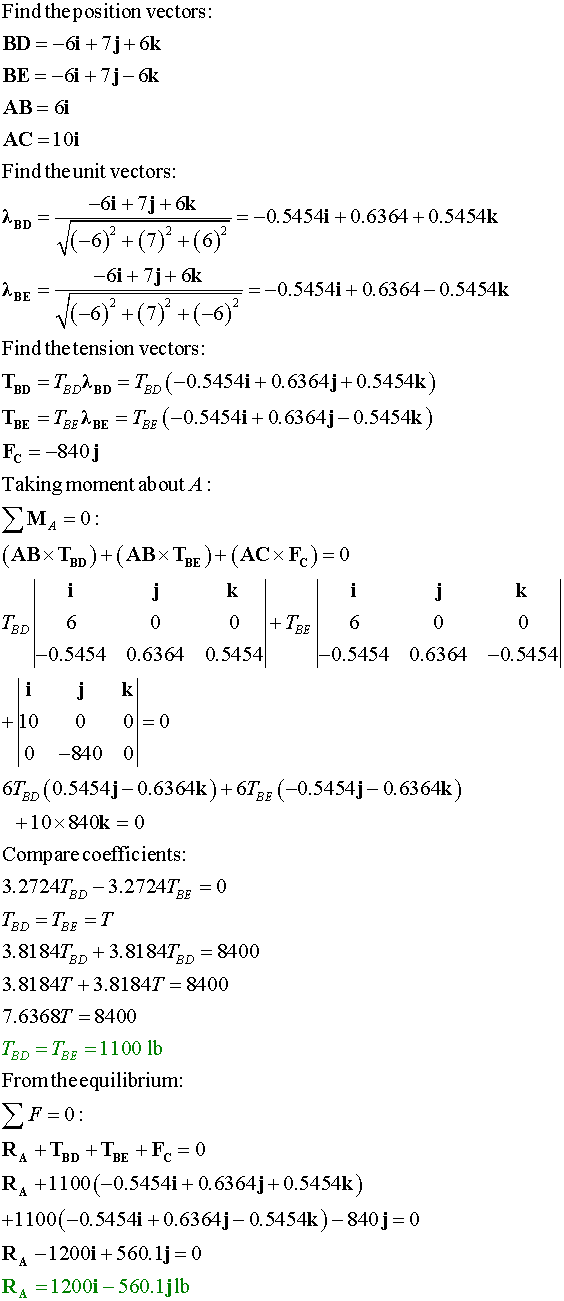

1 Answer

...
