Beer-Vector-Mechanics-for-Engineers-Statics-and-Dynamics-10th, 2-48P

Question

Two cables are tied together at C and are loaded as shown. Knowing
that P = 500 N and α = 60, determine the tension (a) in
cable AC, (b) in cable BC.

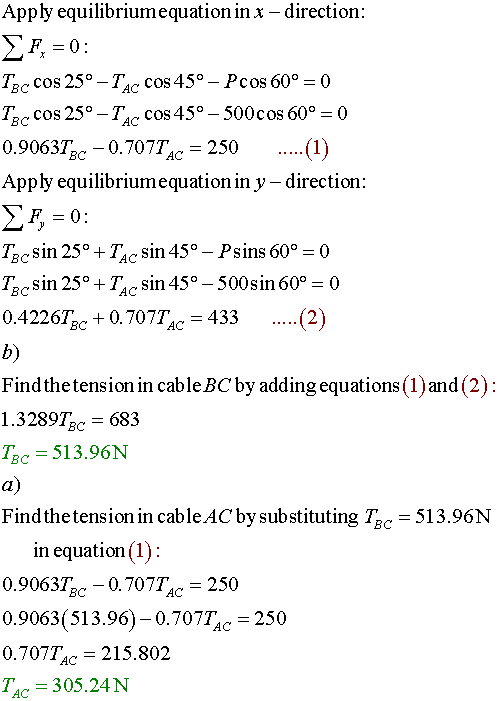

Answer 1

Draw the free body diagram:
