Engineering mechanics 13th edition Hibbler 3.24P

0 votes

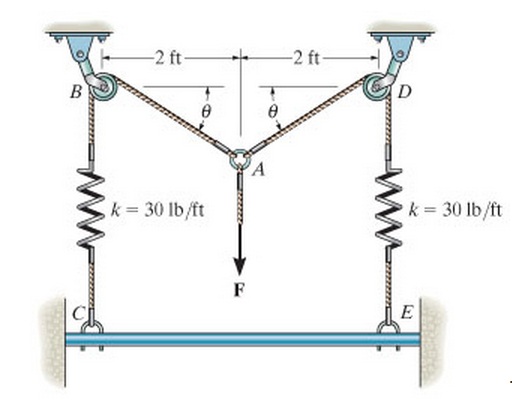

The springs on the rope assembly are originally unstretched when theta = 0. Determine the

tension in each rope when F=90lb. Neglect the size of the pulleys at B and D.

asked Jul 11, 2015 in MECHANICAL ENGINEERING by anonymous

1 Answer

0 votes

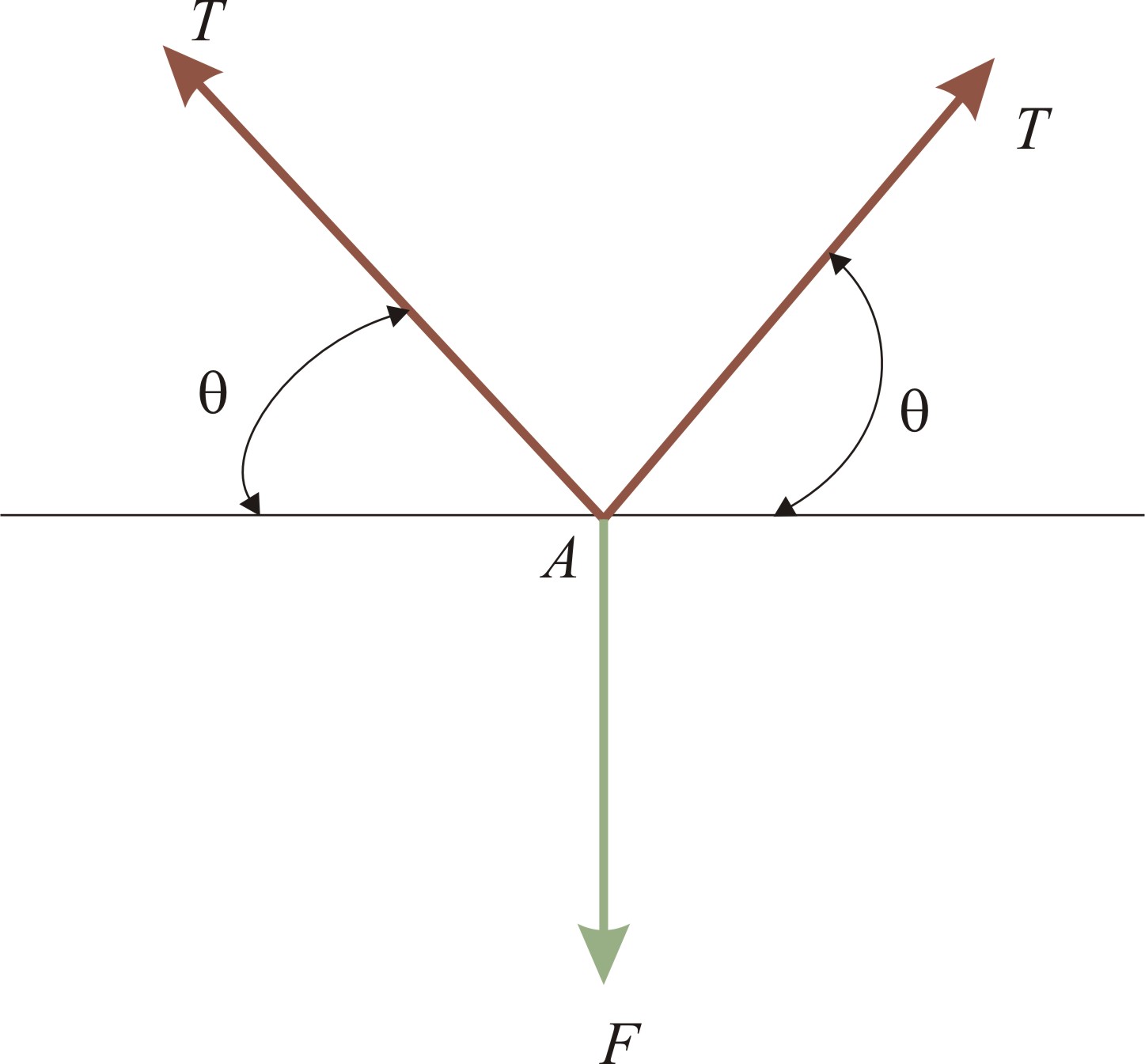

Draw the free body diagram:

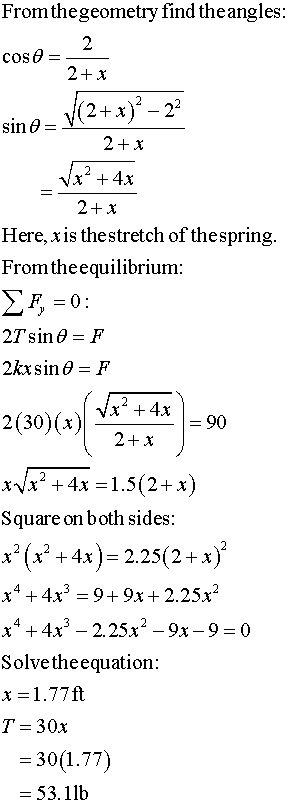

Therefore, the tension each cable is 53.1 lb

answered Jul 14, 2015 by david Expert
