Engineering mechanics statics 13th hibbler chapter 2 problem 1

0 votes

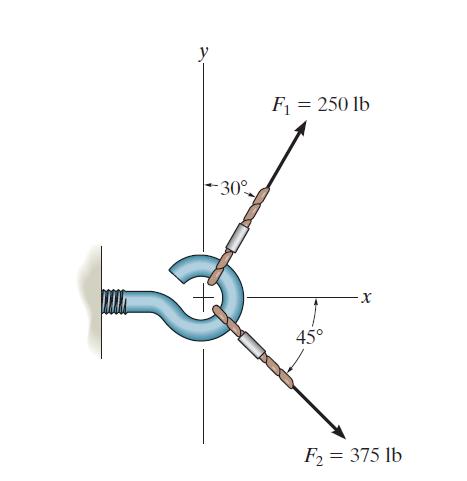

Determine the magnitude of the resultant force
F_R = F_1 + F_2 and its direction, measured counterclockwise
from the positive x axis.
asked Jul 31, 2015 in MECHANICAL ENGINEERING by anonymous
Share this question
Google+ Facebook Twitter LinkedIn Reddit

1 Answer

0 votes

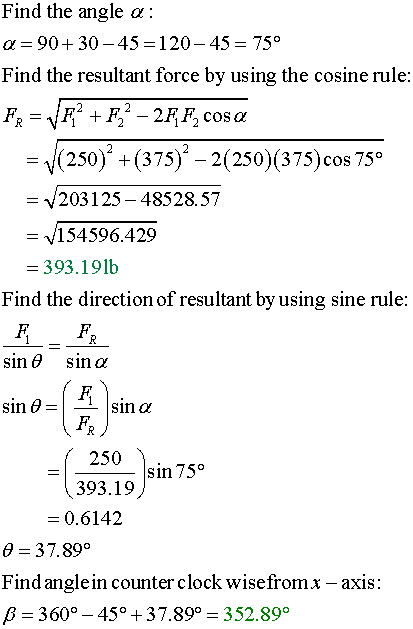

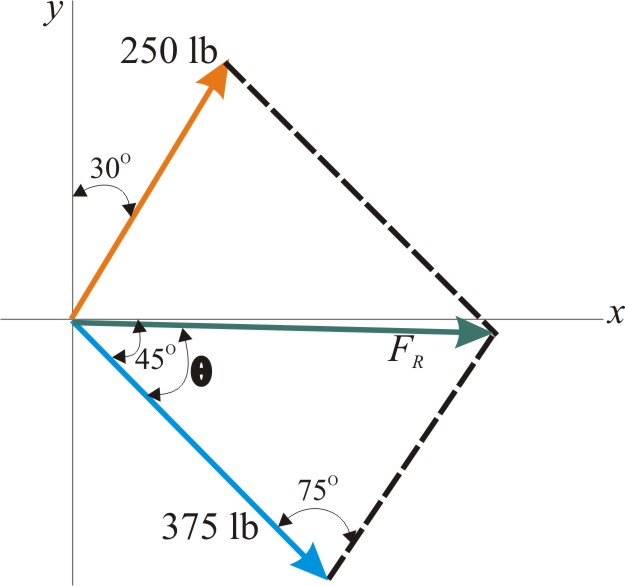

Draw the vector diagram:

answered Aug 1, 2015 by Thomas Apprentice
