Engineering mechanics 13th edition Hibbler 2.65P

0 votes

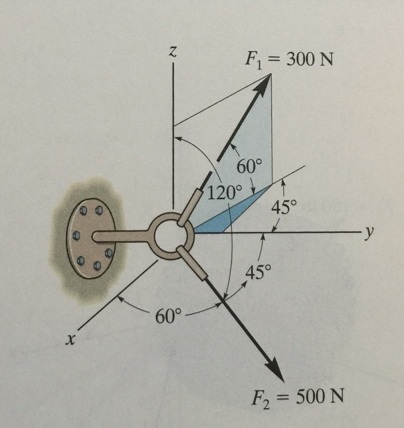

The screw eye is subjected to the forces shown.

Express each force in Cartesian vector form and then determine the resultant force.Find the magnitude and coordinate direction angles of the resultant force.

asked Jul 11, 2015 in MECHANICAL ENGINEERING by anonymous
reshown Jul 11, 2015 by bradely

1 Answer

0 votes

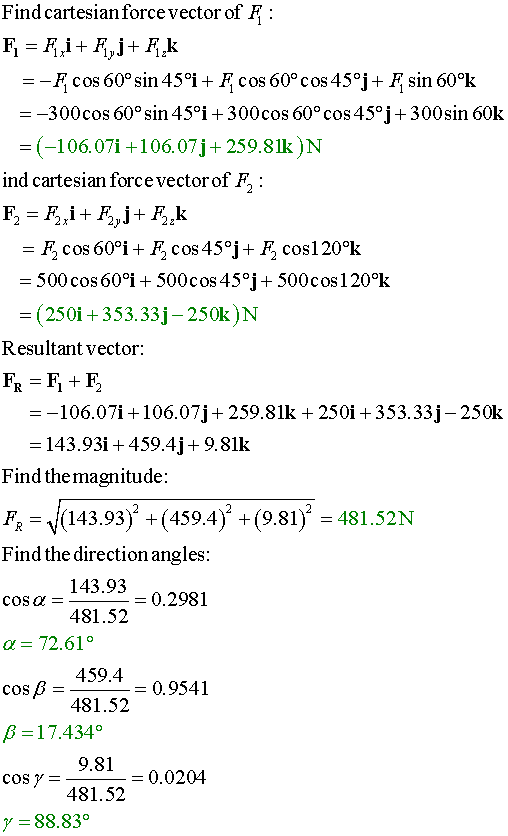

Find the solution below:

answered Jul 14, 2015 by david Expert
