Engineering mechanics statics 13th hibbler chapter 2 problem 29

Question

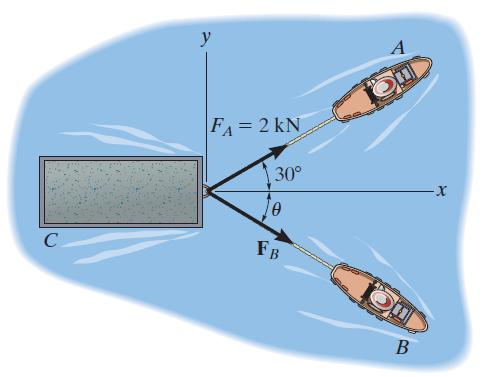

If FB = 3 kN and theta = 45, determine the magnitude

of the resultant force of the two tugboats and its

direction measured clockwise from the positive x axis.

Answer 1

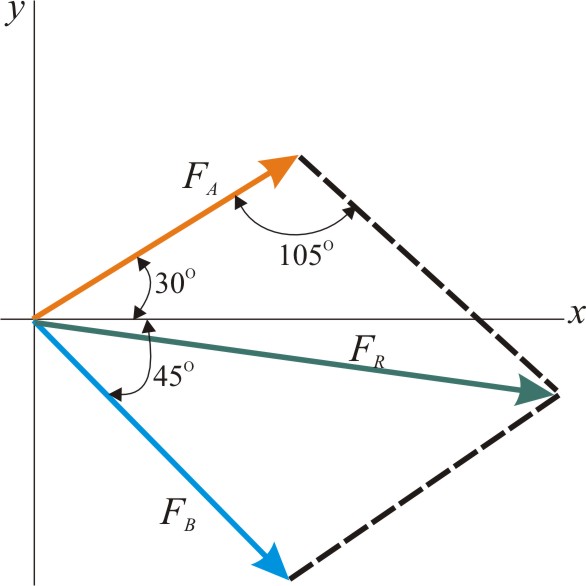

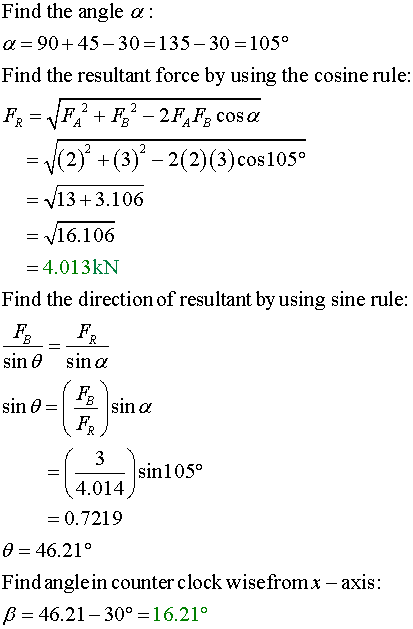

Draw the vector diagram of the forces:
