Voltage in circuit

0 votes

asked Aug 1, 2015 in ELECTRICAL ENGINEERING by anonymous

1 Answer

0 votes

Step 1:

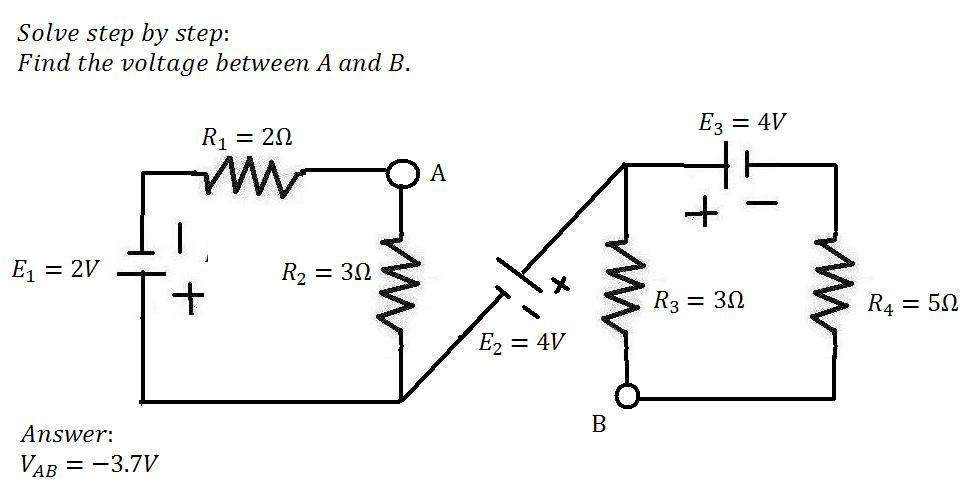

Find the voltage across the nodes A and B.

The current flowing through the first loop :

Apply KVL to the first loop.


The current flowing through the second loop :

Apply KVL to the second loop.


Step 2:

The voltage across the nodes A and B.


The voltage across the nodes A and B is -3.7 V.

Solution :

The voltage across the nodes A and B is -3.7 V.
