Thevenin circuit

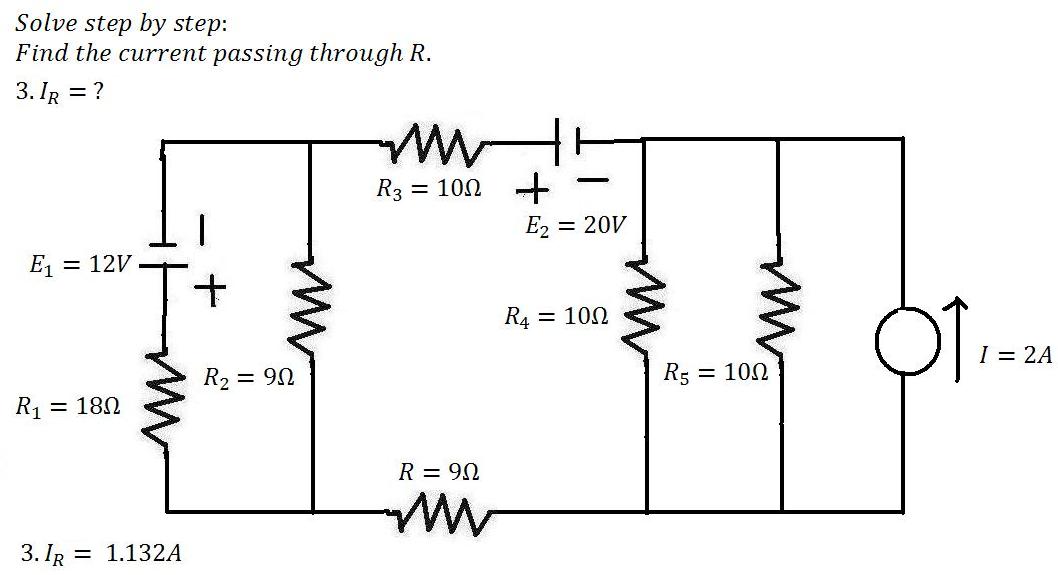

Question

Answer 1

Step 1 :

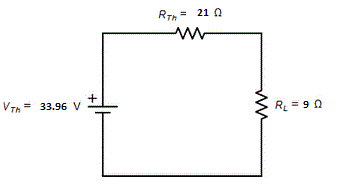

Redraw the circuit with equivalent thevenins voltage and resistance.

(From the results of http://www.mathskey.com/question2answer/31682/thevenin-circuit

& http://www.mathskey.com/question2answer/31683/thevenin-circuit  )

Observe the diagram.

The resistors are connected in series.

Thevenins voltage is .

Circuit current is  .

Substitute corresponding values in the above equation.

Solution :

Current flows through the resistor R is .
