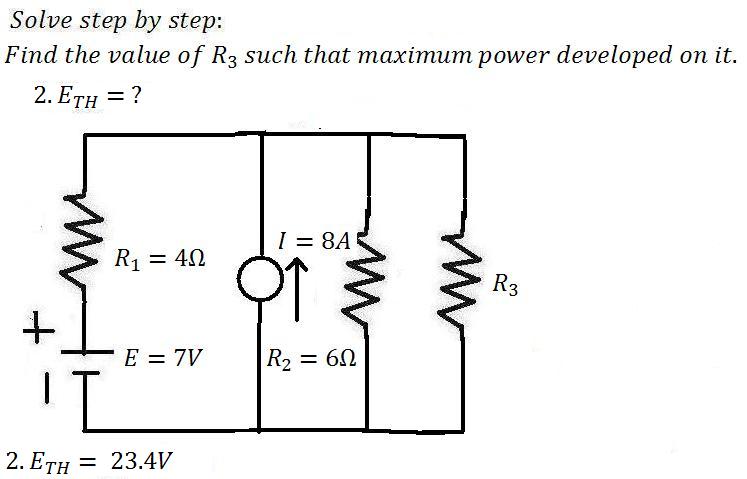

Thevenin problem

0 votes

asked Aug 7, 2015 in ELECTRICAL ENGINEERING by anonymous

1 Answer

0 votes

(2)

Step 1:

Find the thevenin's equivalent voltage.

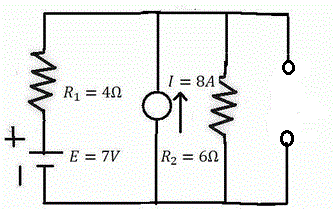

1.Open the load resistor.

2.Calculate the Open Circuit Voltage. This is the Thevenin Voltage (VTH).

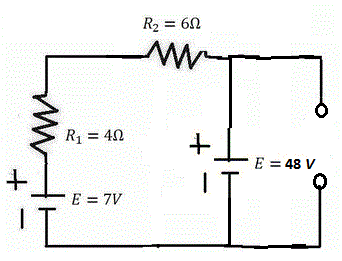

Redraw the circuit :



Use source transfermation to convert the current source to a voltage source.

Apply KVL to the loop.


Step 2:

Find Thevenin Voltage (VTH).

Thevenin Voltage VTH  = VR1 + E .

VTH  = -4(-4.1) + 7

VTH  = 16.4 + 7.

VTH  = 23.4.

Therefore Thevenin Voltage VTH  = 23.4 V.

Solution :

Thevenin Voltage is VTH  = 23.4 V.

answered Aug 7, 2015 by justmaths Rookie
edited Aug 7, 2015 by bradely
