Norton equivalent

Question

Answer 1

(1)

Step 1:

Find the Norton's equivalent resistance.

1.Open the load resistor.

2.Open Current Sources and Short Voltage Sources.

3.Calculate the Open Circuit Resistance. This is the Norton Resistance .

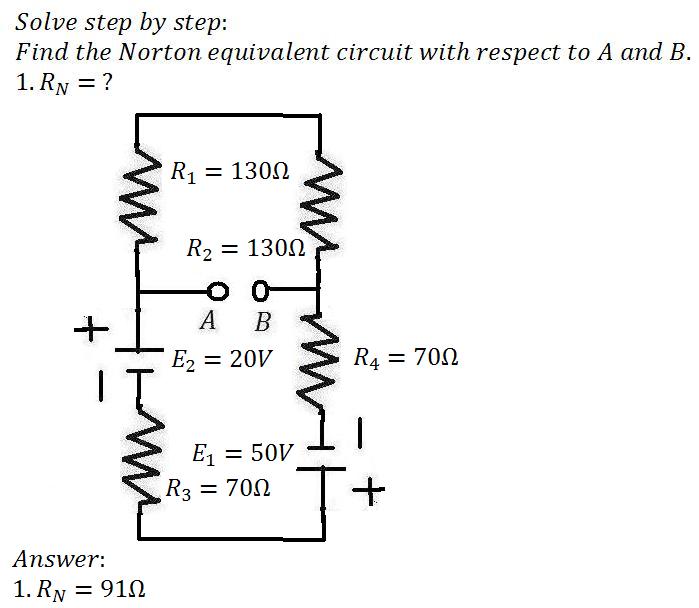

Redraw the circuit :

Step 2:

and are in series.

.

and are in series.

and are in parallel.

Nortons Resistance is .

Solution :

Nortons Resistance is .
