0 votes

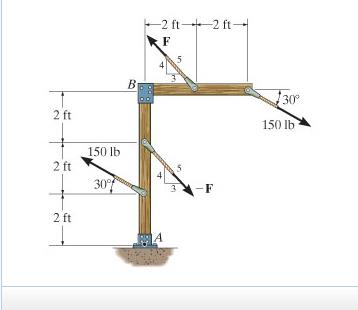

Determine the required magnitude of force F if the resultant couple moment on the frame is 330 lb⋅ft , clockwise.



asked Oct 20, 2016 in MECHANICAL ENGINEERING by anonymous
Share this question
Google+ Facebook Twitter LinkedIn Reddit

1 Answer

0 votes

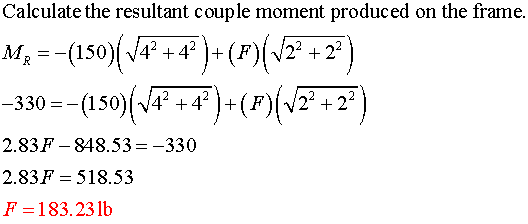

Please find the solution

answered Oct 21, 2016 by anonymous
