Thevenin equivalent

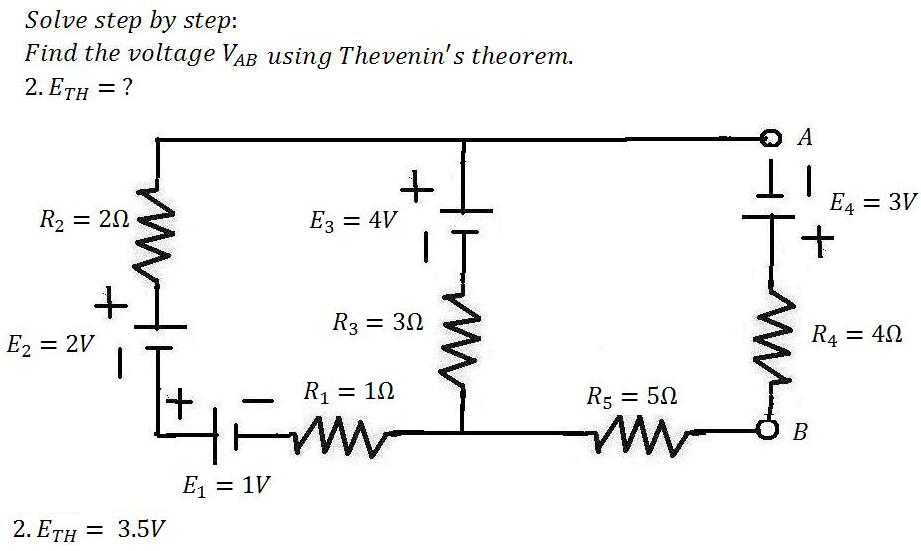

Question

Answer 1

(2)

Step 1:

Find the Thevenin's equivalent Voltage.

1. Open the load resistor.

2. Calculate the Open Circuit Voltage. This is the Thevenin's Voltage (V_TH).

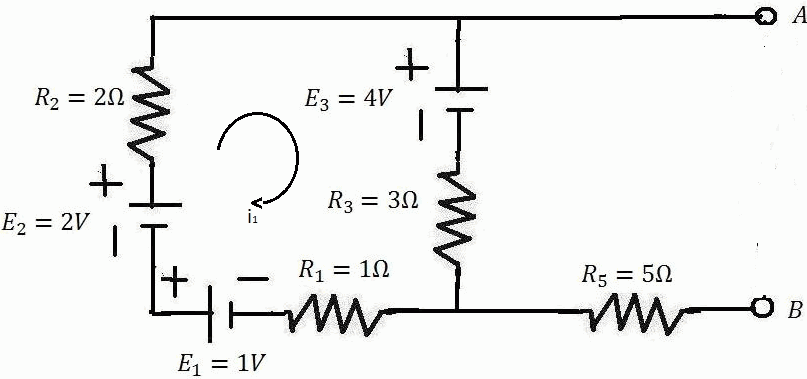

Redraw the circuit :

Apply KVL in loop 1.

Voltage drop across the terminals A and B is the thevenins voltage.

Thevenin's equivalent voltage is .

Solution :

Thevenin's equivalent voltage is .
