Physics help please

Question

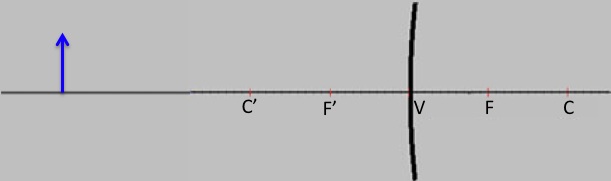

The image produced would be:

A) real

B) virtual

C) no image is formed

The image produced would be ______ than the original object.

A) smaller

B) larger

C) the same size

D) no image is formed

The image produced would be:

A) erect

B) inverted

C) no image is formed

The image produced would be located:

A) on the same side of the mirror as the object to the left of C

B) on the same side of the mirror as the object at C

C) on the same side of the mirror as the object between F and C

D) on the opposite side of the mirror as the object

E) no image forms



Answer 1

1)

Properties of Convex mirror image are

1) Virtual

2) Upright

3) Erect and Shrunken

4) Smaller in size

5) Image located behind the Convex mirror



The image produced would be:

Option(B) virtual → Correct answer.

Answer 2

2)

The image produced would be ______ than the original object.

Option (A) smaller → Correct answer.

Answer 3

3)

The image produced would be:

Option(A) erect → Correct answer.

Answer 4

4)

The image produced would be located:

Option(D) on the opposite side of the mirror as the object   → Correct answer.
